Visualization

Min/Max Ranges

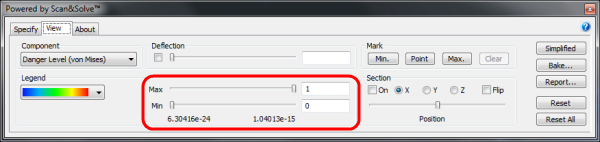

In the Advanced View, the legend limits may be adjusted to bracket specified ranges of solution values. Different limits may be specified for each solution component.

Max slider controls the maximum value displayed on the legend. The adjacent edit box shows the current maximum legend value and supports manual entry of the maximum value.

Min slider controls the minimum value displayed on the legend. The adjacent edit box shows the current minimum legend value and supports manual entry of the minimum value.

The readouts under the sliders indicate the minimum and maximum values of the currently displayed component.

Examples

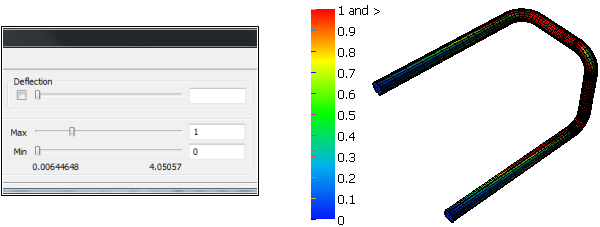

The following is an example of the unmodified Min and Max ranges, and their effect on the rendered solid.

The following is an example of modifying the Min and Max ranges, and the effect on the rendered solid.
