Visualization

Point Queries

Scan&Solve™ will place leaders in the model pointing out the location and value of the displayed solution quantities. These leaders will only display under view types that will also allow annotations to be displayed (wireframe, shaded, ghosted, x-ray). The leader text size is controlled by Rhino's dimension scale and text height settings.

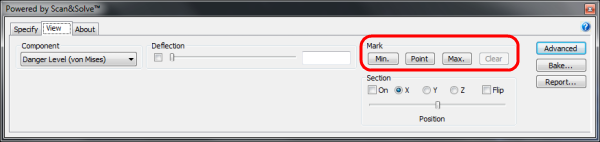

The marking capabilities are accessed through the following three buttons:

[Minimum] marks the location of the minimum value of the active solution component.

[Point] marks the value of the active solution component at a point selected on the model.

[Maximum] marks the location of the maximum value of the active solution component.

Example

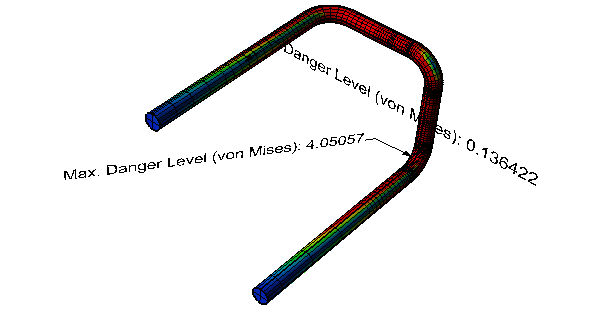

The following is an example of a solid with a point query placed at the Maximum and at a random point.
